Agilex 7 F-Tile Ethernet Hard IP
The Agilex 7 FPGA F-Tile IP core implements Ethernet at data rates of 10 Gbps, 25 Gbps, 40 Gbps, 50 Gbps, 100 Gbps, 200 Gbps and 400 Gbps. The user can choose a media access control (MAC) and a physical coding sublayer (PCS) variation, a PCS-only variation, a Flexible Ethernet (FlexE) variation, or an Optical Transport Network (OTN) variation.
By Altera

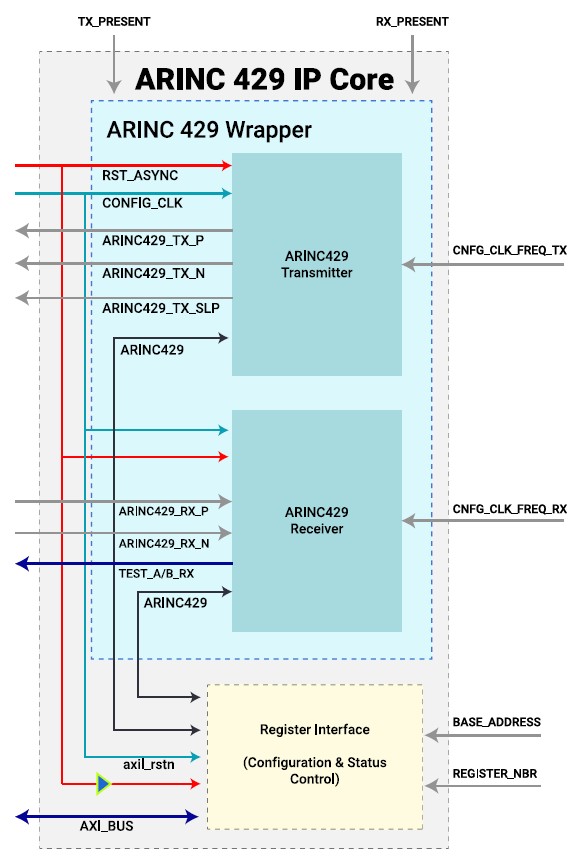

ARINC 429 IP Core
Logic Fruit's ARINC 429 IP Core is a multichannel module with support for virtually any number of transmitters and Receivers. Both low speed (12.5 Kbps) and high speed (100 Kbps) data rates are supported for data transmission, along with other configurable data rates from 12.5 Kbps to 1 Mbps.
By Logic Fruit Global Technologies Inc

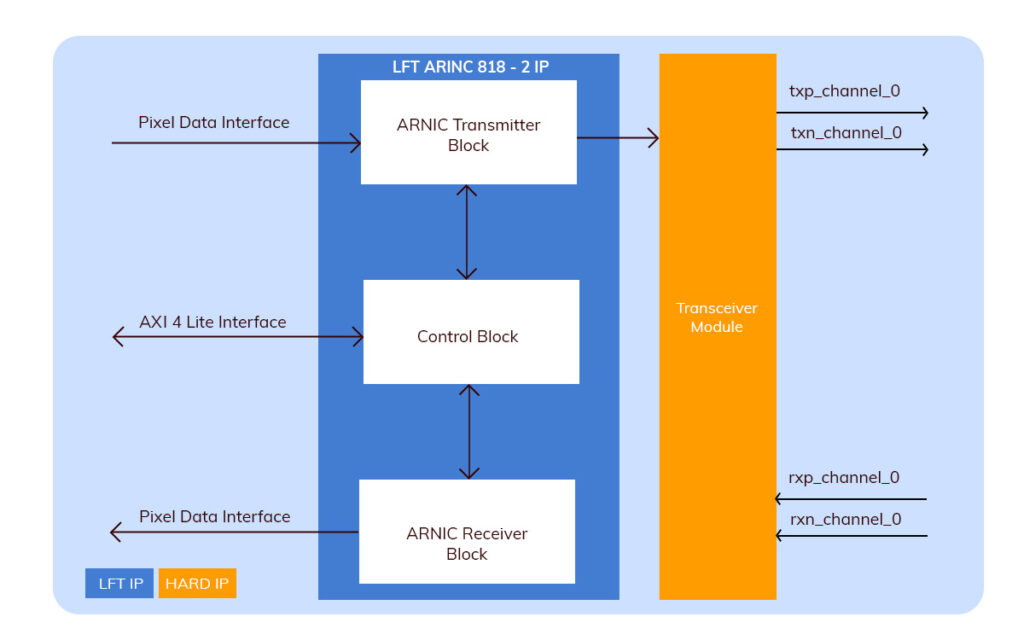

ARINC 818 IP CORE
ARINC 818 (ADVB) is a high data rate video bus based on the ANSI Fiber Channel Audio-Video (FC-AV) protocol standards. Emphasizing cost reduction as well as speeding up the link initialization. ARINC 818 is a unidirectional interface that was developed for avionics systems, such as connecting mission processors to cockpit displays like HUDS, MFDs, PFDs, or HMDs. Used widely in Boeing 787 and the KC46A tanker, Airbus A350 and A400M, the COMAC C-919, the C-17, F15, F18 and various military aircrafts.
By Logic Fruit Global Technologies Inc

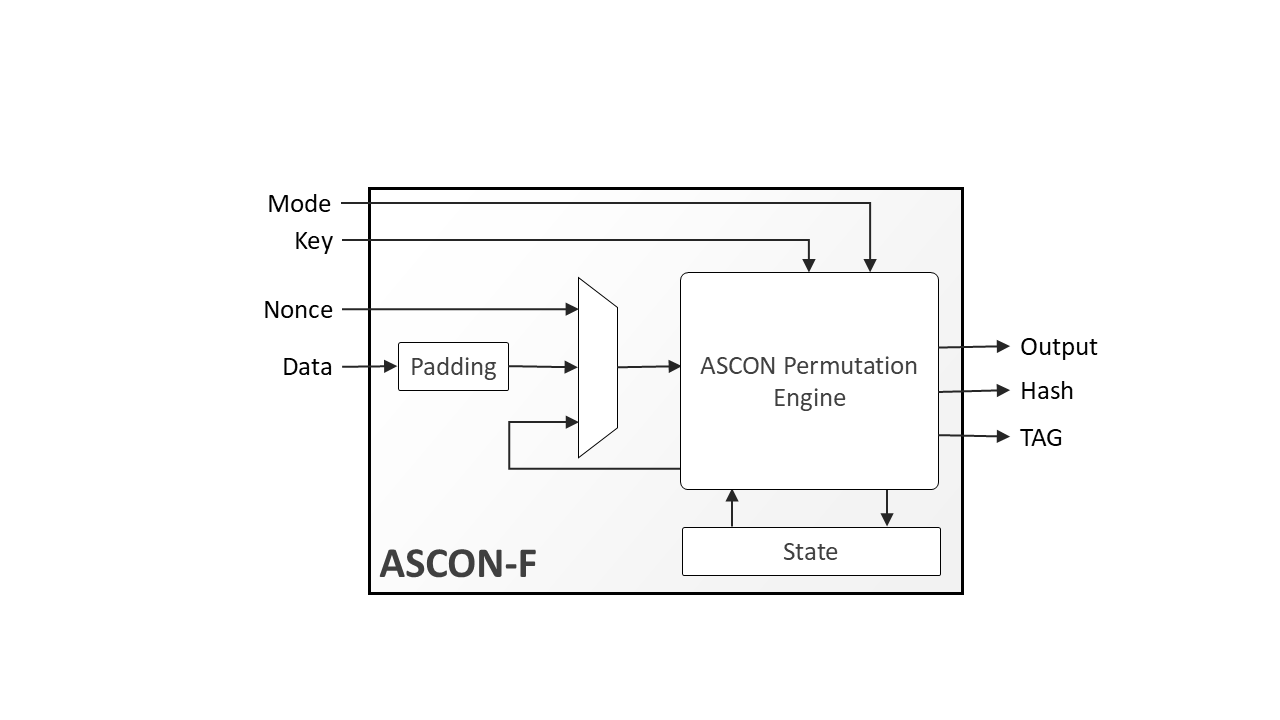

ASCON-F: ASCON Authenticated Encryption & Hashing Engine
The ASCON-F IP is a compact, high-throughput HW core implementing the lightweight authenticated encryption with associated data (AEAD) & hashing algorithms of the Ascon v1.2 spec. A single instance supports encryption & decryption with Ascon-128 & Ascon-128a, as well as cryptographic hashing with Ascon-Hash & Ascon-Hasha. Operation mode, key, and nonce values are run-time programmable & can change per input block. The core provides simple I/O I/F, optionally bridged to AXI4-Stream or AXI4 Memory Mapped ports through CAST bridges. It synthesizes to ~11k gates & runs at over 2GHz in modern ASIC technologies. Excluding padding & initialization, throughput ranges from 5.3 to 16 bits/cycle, or 10.6 to 32Gbps at 2GHz, with higher throughput possible by instantiating multiple cores. Easy to use & integrate, following best coding & verification practices, has no multi-cycle or false paths, uses only rising-edge D flip-flops, no tri-states or SRAMs, and operates in a single clock/reset domain.
By Computer Aided Software Technologies, Inc (dba CAST)

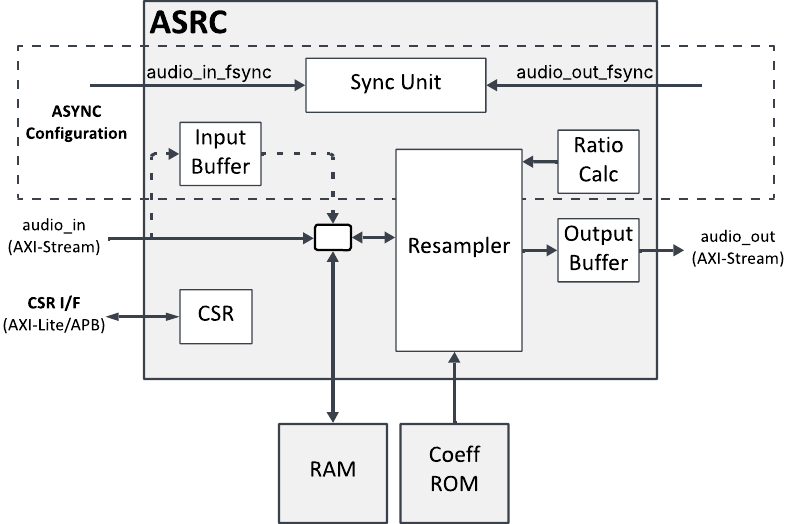

ASRC: Audio Sample Rate Converter
The CAST ASRC (Audio Sample Rate Converter) is a compact, high-performance IP core that delivers precise digital audio conversion across a wide range of sample rates (8 kHz to 192kHz) while preserving signal integrity and minimizing distortion. Supporting both asynchronous and synchronous modes, it ensures seamless real-time streaming or high-speed batch processing for applications in professional audio, broadcast, telecommunications, automotive infotainment, gaming, and VR. The ASRC handles tens to hundreds of TDM channels, achieving ultra-low distortion with THD+N averaging -130 dB. With sub-100ms sync time and minimal latency, it provides transparent, studio-grade 24-bit audio conversion. Designed for easy integration into ASICs or FPGAs, it features AXI4-Stream for audio data, AXI-Lite/APB control interfaces, and optimized resource usage for cost-sensitive environments. Deliverables include Verilog RTL/netlist, testbenches, drivers, and documentation for rapid deployment
By Computer Aided Software Technologies, Inc (dba CAST)

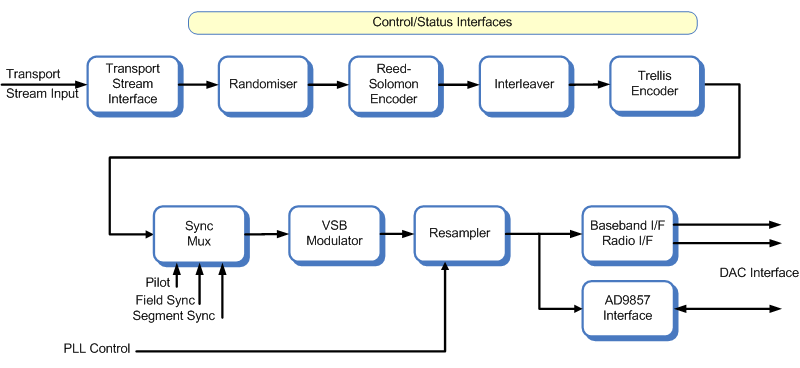

ATSC 8-VSB Modulator
The CMS0033 ATSC 8-VSB modulator with integrated Channel Coder has been designed specifically to implement the 8-VSB requirements of the ATSC Digital Television Standard (A/53).
By Commsonic Ltd
Backplane Ethernet 10GBASE-KR PHY FPGA IP
The Backplane Ethernet 10GBASE-KR PHY Altera FPGA Intellectual Property (IP) core is a transceiver PHY that allows you to instantiate the hard standard physical coding sublayer (PCS), the higher performance hard 10G PCS, and the hard physical medium attachment (PMA) for a single Backplane Ethernet channel.
By Altera
BxBChan Channelizer
An efficient implementation of a Polyphase Filter Bank channelizer.
By Bit by Bit Signal Processing LLC
BxBFFT Fast Fourier Transform
An extraordinarily Fast, Efficient, and Feature-Packed FFT implementation.
By Bit by Bit Signal Processing LLC
