XIP8103H Pseudo Random Number Generator (PRNG) IP Core, high-speed version

Overview Key Features Offering Brief What's Included Ordering Information Markets

Xiphera Ltd.

Select

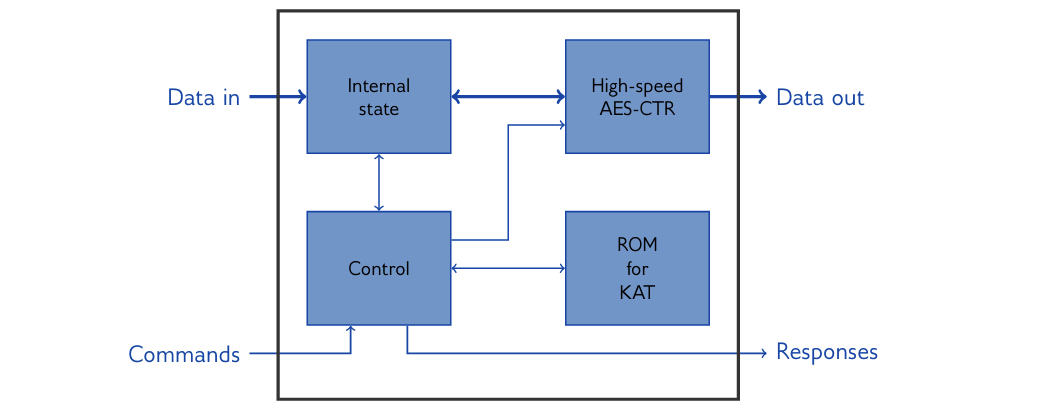

Xiphera’s Pseudorandom Number Generator (PRNG) IP core establishes a benchmark for hardware-based security in cryptographic systems by generating high-quality pseudorandom numbers. It delivers accelerated output rates essential for secure communications and cryptographic operations, such as key generation. It includes robust and thoroughly characterised initialisation and reseeding mechanisms and a proven CTR_DRBG and AES-256 based pseudorandom number generator.

View Partner Website

Partner Product Page

Contact Now

Contact Xiphera Ltd.

LeadSource

ASAP Account ID

Record Type Name

Key Features

High Performance: XIP8103H can achieve over 69 Gbps throughput, while consuming only about 18000 Lookup Tables (LUTs) in a typical FPGA implementation.
Versatility: XIP8103H supports the forward prediction resistance mode, which can be set on and off between output generation, as well as the use of personalization strings and additional inputs for instantiation and reseeding.
Standard Compliance: XIP8103H is compliant with the NIST SP800-90A specification [1]. XIP8103H can be combined with Xiphera’s NIST SP800-90B [3] compliant XIP8001B to form a NIST SP800-90C compliant [2] Random Bit Generator (RBG).
Easy integration with AXI4-Lite and AXI stream interfaces.

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Cyclone® IV GX FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, MAX® 10 FPGA, Cyclone® V SX SoC FPGA, Arria® V GZ FPGA, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Arria® V SX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 SX SoC FPGA, Agilex® 7 FPGAs and SoC FPGAs M-Series, Cyclone® V GT FPGA, Arria® 10 GT FPGA, Arria® V ST SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Cyclone® V SE SoC FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® V GX FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Cyclone® V GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, Cyclone® V ST SoC FPGA, Agilex® 5 FPGAs and SoC FPGAs D-Series, Stratix® 10 GX FPGA, Arria® V GT FPGA, Cyclone® 10 LP FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Cyclone® 10 GX FPGA, Stratix® 10 AX SoC FPGA, Stratix® III FPGA
Offering Status	Production
Integrated Testbench	Yes
Evaluation License	Yes
Design Examples Available	Yes
Demo	No
Compliance	Yes
Latest Quartus Version Supported	25.1.1
Development Language	Encrypted VHDL, VHDL
