XIP1213B: MACSEC AES256-GCM IP core targeting 1Gbps+ links

Overview Key Features Offering Brief What's Included Ordering Information Markets

Xiphera Ltd.

Select

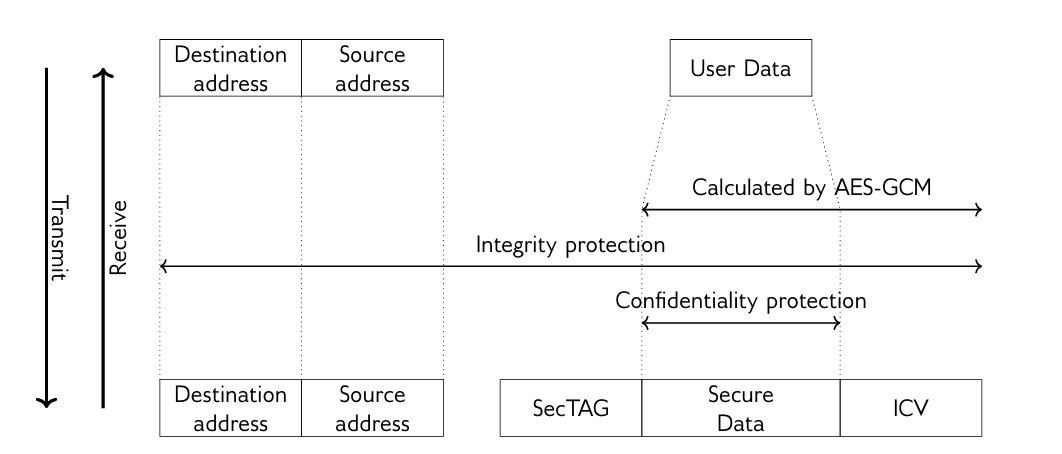

MACsec is a point-to-point protocol located on layer two (Data Link) of the OSI model. Xiphera’s comprehensive MACsec solution portfolio safeguards the confidentiality and integrity of data transmitted over point-to-point communication links, assured by the Advanced Encryption Standard (AES) in Galois Counter Mode (GCM) with 256-bit key length.

View Partner Website

Partner Product Page

Contact Now

Contact Xiphera Ltd.

LeadSource

ASAP Account ID

Record Type Name

Key Features

Moderate resource requirements: The entire XIP1213B requires 9907 Adaptive Lookup Modules (ALMs) (Altera® Cyclone® 10 GX), and does not require any multipliers or DSPBlocks in a typical FPGA implementation.
Performance: XIP1213B achieves a throughput in the Gbps range3, for example 3.78 Gbps in AMD® Kintex® UltraScale+.
Standard Compliance: XIP1213B is fully compliant with the MACsec protocol as standardized in IEEE Std 802.1AE-2018 [2]. The cipher suite (GCM-AES-256 or GCM-AES-XPN-256) is fully compliant with the Advanced Encryption Algorithm (AES) standard [1], as well as with the Galois Counter Mode (GCM) standard [3].
Test Vector Compliance: XIP1213B passes the relevant test vectors speci€ed in Annex C of IEEE Std 802.1AE-2018 [2].
32-bit FIFO Interfaces ease the integration of XIP1213B with other FPGA logic and/or control software.

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Cyclone® IV GX FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, MAX® 10 FPGA, Cyclone® V SX SoC FPGA, Arria® V GZ FPGA, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, MAX® V CPLD, Agilex® 7 FPGAs and SoC FPGAs I-Series, Arria® V SX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 SX SoC FPGA, Agilex® 7 FPGAs and SoC FPGAs M-Series, Cyclone® V GT FPGA, Arria® 10 GT FPGA, Arria® V ST SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Cyclone® V SE SoC FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® V GX FPGA, Cyclone® V E FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Cyclone® V GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, Cyclone® V ST SoC FPGA, Agilex® 5 FPGAs and SoC FPGAs D-Series, Stratix® 10 GX FPGA, Arria® V GT FPGA, Cyclone® 10 LP FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Cyclone® 10 GX FPGA, Stratix® 10 AX SoC FPGA, Cyclone® IV E FPGA, Stratix® III FPGA
Offering Status	Production
Integrated Testbench	Yes
Evaluation License	Yes
Design Examples Available	Yes
Demo	No
Compliance	Yes
Latest Quartus Version Supported	25.1.1
Development Language	Encrypted VHDL, VHDL
