XIP1183B: Balanced AES256-XTS IP Core

Overview Key Features Offering Brief What's Included Ordering Information Markets

Xiphera Ltd.

Select

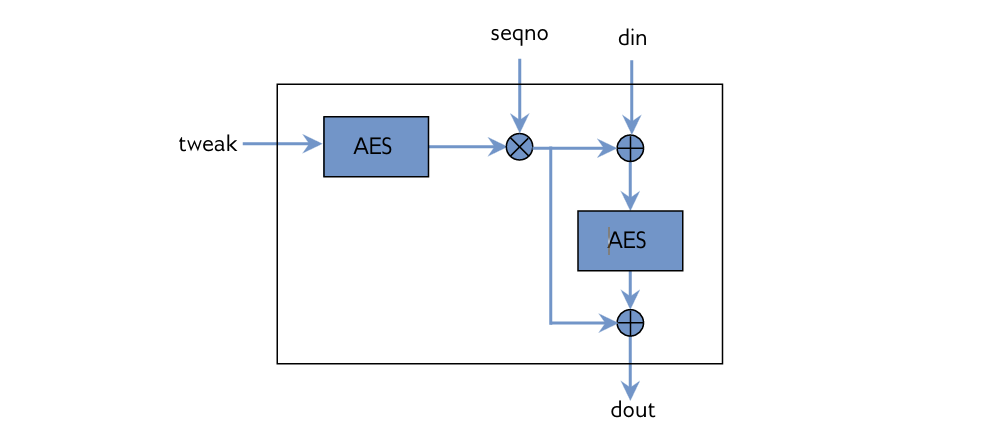

AES-XTS IP cores implement the Advanced Encryption Standard (AES) with a 256-bit key in XTS mode. AES-XTS is a block-based encryption method primarily employed to secure data while it is stored, and the IP cores can be used to encrypt data on hard drives and other storage devices.

View Partner Website

Partner Product Page

Contact Now

Contact Xiphera Ltd.

LeadSource

ASAP Account ID

Record Type Name

Key Features

Moderate resource requirements: The entire XIP1183B requires 6079 Adaptive Lookup Modules (ALMs) (Intel® Agilex® F), and does not require any multipliers or DSPBlocks2.
Performance: XIP1183B achieves an impressive throughput in the Gbps range, for example 3.20+ Gbps in Xilinx® Kintex® UltraScale+.
Standard Compliance: XIP1183B is compliant with both the Advanced Encryption Algorithm (AES) standard [1], and the XTS standard [2] .
Optional Ciphertext stealing support as defined in [2].
Increase Performance can be achieved by paralle instantiations of XIP1183B.

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Cyclone® IV GX FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, MAX® 10 FPGA, Cyclone® V SX SoC FPGA, Arria® V GZ FPGA, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, MAX® V CPLD, Agilex® 7 FPGAs and SoC FPGAs I-Series, Arria® V SX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 SX SoC FPGA, Agilex® 7 FPGAs and SoC FPGAs M-Series, Cyclone® V GT FPGA, Arria® 10 GT FPGA, Arria® V ST SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Cyclone® V SE SoC FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® V GX FPGA, Cyclone® V E FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Cyclone® V GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, Cyclone® V ST SoC FPGA, Agilex® 5 FPGAs and SoC FPGAs D-Series, Stratix® 10 GX FPGA, Arria® V GT FPGA, Cyclone® 10 LP FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Cyclone® 10 GX FPGA, Stratix® 10 AX SoC FPGA, Cyclone® IV E FPGA, Stratix® III FPGA
Offering Status	Production
Integrated Testbench	No
Evaluation License	No
Design Examples Available	No
Demo	No
Compliance	No
Latest Quartus Version Supported	25.1.1
Development Language	Encrypted VHDL, VHDL
