XIP1123B: Versatile AES256 IP core (ECB, CBC, CFB, OFB, CTR)

Overview Key Features Offering Brief What's Included Ordering Information Markets

Xiphera Ltd.

Select

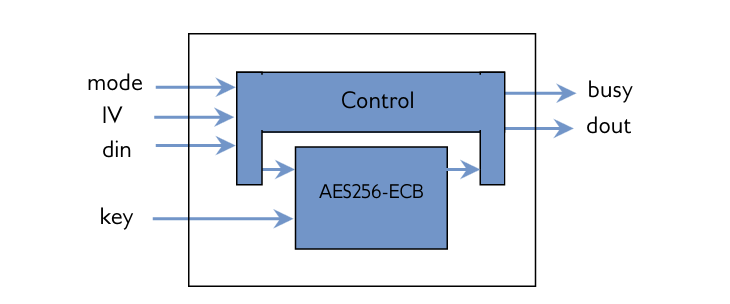

Xiphera’s Versatile AES IP core implements the Advanced Encryption Standard (AES) with a 256-bit key in five selectable modes: ECB, CBC, CFB, OFB, and CTR. All of these modes ensure data confidentiality and are widely used in security designs and cryptographic protocols.

View Partner Website

Partner Product Page

Contact Now

Contact Xiphera Ltd.

LeadSource

ASAP Account ID

Record Type Name

Key Features

Moderate resource requirements: The entire XIP1123B requires 3891 Adaptive Lookup Modules (ALMs) (Intel® Agilex® F), and does not require any multipliers or DSPBlocks4.
Performance: XIP1123B achieves an impressive throughput in the Gbps range, for example 3.23+ Gbps in Xilinx® Kintex® UltraScale+.
Standard Compliance: XIP1123B is fully compliant with both the Advanced Encryption Algorithm (AES) standard [1], as well as with the ECB, CBC, CFB, OFB, and CTR modes of operation [2].
Versatility: The key, initialization vector (IV), and the mode of operation can dynamically updated for every 128-bit data block.

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Cyclone® IV GX FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, MAX® 10 FPGA, Cyclone® V SX SoC FPGA, Arria® V GZ FPGA, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, MAX® V CPLD, Agilex® 7 FPGAs and SoC FPGAs I-Series, Arria® V SX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 SX SoC FPGA, Agilex® 7 FPGAs and SoC FPGAs M-Series, Cyclone® V GT FPGA, Arria® 10 GT FPGA, Arria® V ST SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Cyclone® V SE SoC FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® V GX FPGA, Cyclone® V E FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Cyclone® V GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, Cyclone® V ST SoC FPGA, Agilex® 5 FPGAs and SoC FPGAs D-Series, Stratix® 10 GX FPGA, Arria® V GT FPGA, Cyclone® 10 LP FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Cyclone® 10 GX FPGA, Stratix® 10 AX SoC FPGA, Cyclone® IV E FPGA, Stratix® III FPGA
Offering Status	Production
Integrated Testbench	Yes
Evaluation License	Yes
Design Examples Available	Yes
Demo	No
Compliance	Yes
Latest Quartus Version Supported	25.1.1
Development Language	Encrypted VHDL, VHDL
