USB 3.2 FMC Board

Overview Key Features Offering Brief What's Included Ordering Information Markets

System Level Solutions, Inc

Select

USB 3.2 FMC (FPGA Mezzanine Card) makes it easier to validate USB 3.2 functionality with FPGA having inbuilt serial transceivers. It also contains ULPI PHY chip to validate USB 2.0 functionality.

View Partner Website

Partner Product Page

Contact Now

Contact System Level Solutions, Inc

LeadSource

ASAP Account ID

Record Type Name

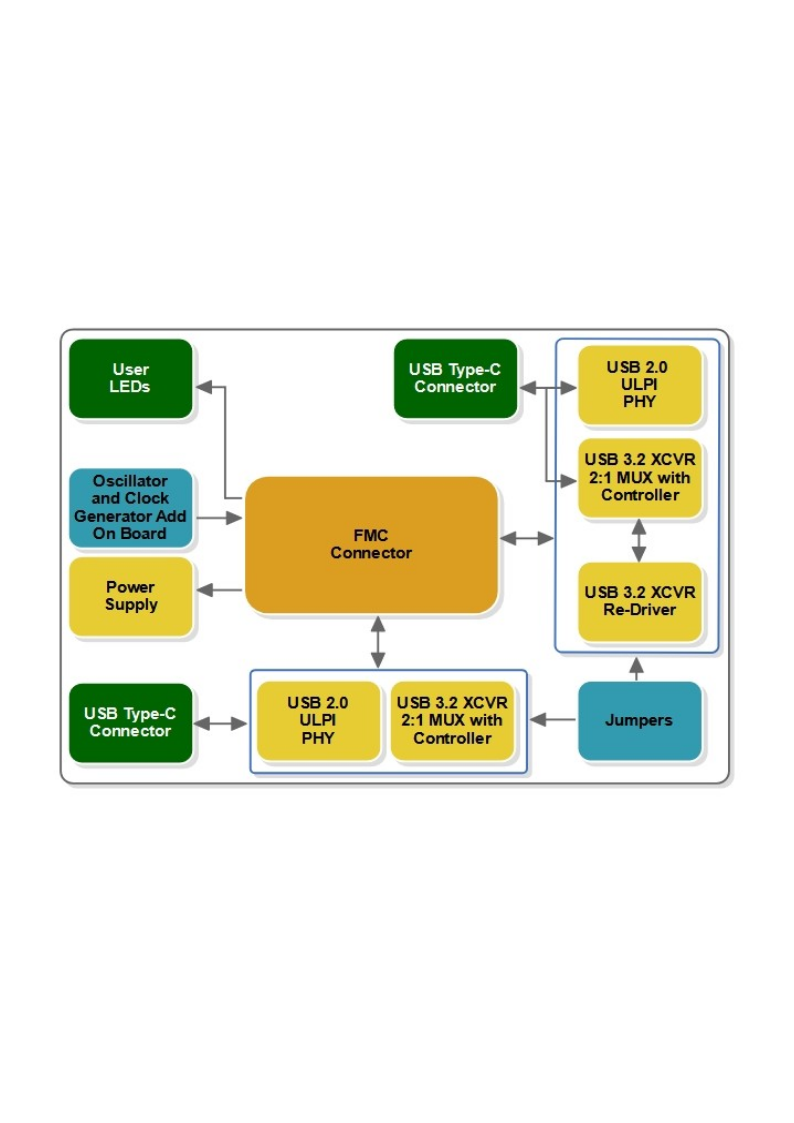

Key Features

FMC Standard Interface.
General Purpose Ios.
Jumpers - For configuring TUSB1002 (USB 3.2 Linear redriver and signal conditioner).
Oscillator and Clock Generator Add on Board.

Offering Brief

Device Family	Arria® 10 GX FPGA, Arria® 10 SX SoC FPGA, Stratix® 10 GX FPGA, Agilex® 7 FPGAs and SoC FPGAs I-Series, Cyclone® 10 GX FPGA
Offering Status	Production
Device OPN(s) on Board	10AX115S2F45I1SG;10AS066N3F40E2SG;1SG280HU1F50E2VG;AGIB027R31B1E1VAA;10CX220YF780E5G
Power	2 USB Power switches to facilitate USB Host mode evaluation
Interfaces	USB
Memory	NA
Connectors	2 USB Type C Connectors
Switches & LEDs	4 user defined LEDs
Latest Quartus Version Supported	25.1.0
