Logic Fruit's PCIe GEN6 PHY IP supports data rates up to 64GT/s per lane with advanced PAM4 signaling. It ensures efficient data handling for demanding applications such as AI, ML, high-performance computing, and modern storage technologies. With scalable throughput and a focus on reliability, this PHY IP simplifies integration into high-speed, data-intensive use cases.
Logic Fruit Global Technologies Inc

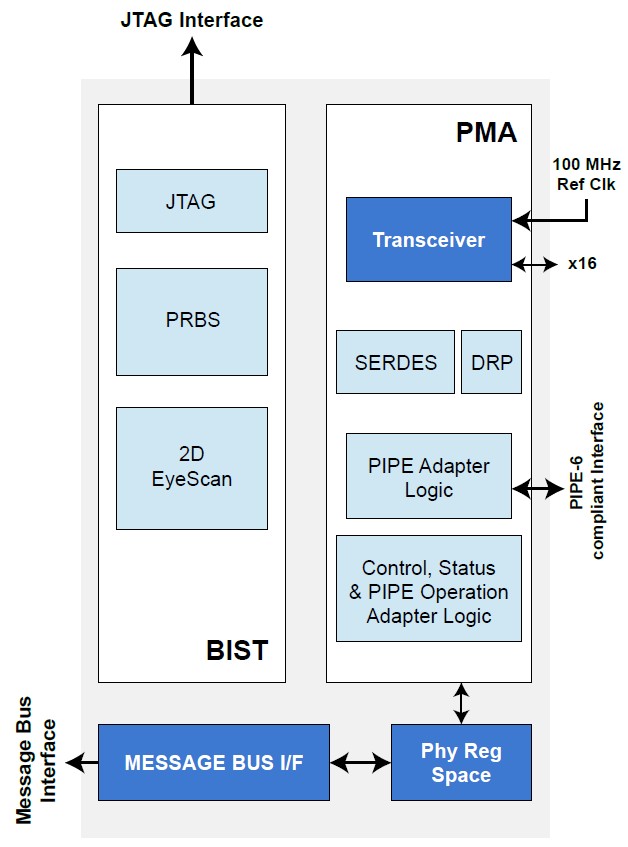

Key Features
- Supports PAM-4 signaling through FPGA transceivers (SerDes).
- Supports PIPE 6.x (SerDes Architecture) for easy integration with Logic Fruit or any third party PCIe 6.x controller IP.
- Supports PRBS testing including loopback modes.
- Supports different power states as per PCIe PHY specification.
- Supports 100MHz common reference clock between RC and EP.
- Supports FPGA native features like DRP access, eye scan, PRBS / Test pattern generation and checker.
- Supports PCIe-compliant patterns including Gen6 compliance/modified compliance (PCIe base 6.2 sections 4.2.14-15), 52UI jitter measurement (PCIe base 6.2 section 4.2.16), High swing toggle (PCIe base 6.2 section 4.2.17), Gen5 compliance/modified compliance (PCIe base 5.0 sections 4.2.10-11), Gen5 jitter measurement (PCIe base 5.0 sections 4.2.12).
Offering Brief
Offering Brief
| Device Family | Agilex® 7 FPGAs and SoC FPGAs I-Series, Stratix® 10 SX SoC FPGA, Agilex® 7 FPGAs and SoC FPGAs M-Series, Agilex® 5 FPGAs and SoC FPGAs E-Series |
|---|---|
| Offering Status | Production |
| Integrated Testbench | No |
| Evaluation License | No |
| Design Examples Available | No |
| Demo | No |
| Compliance | No |
| Latest Quartus Version Supported | 24.3.1 |
| Development Language | VHDL |
RTL with options for both encrypted as well as complete source code.
Easy GUI/Script-based environment to program IP with different configurations.
Example design with simulation test scripts.
Synthesizable example design with required constraint files.
Detailed user and functional programming guide.
Ordering Information
