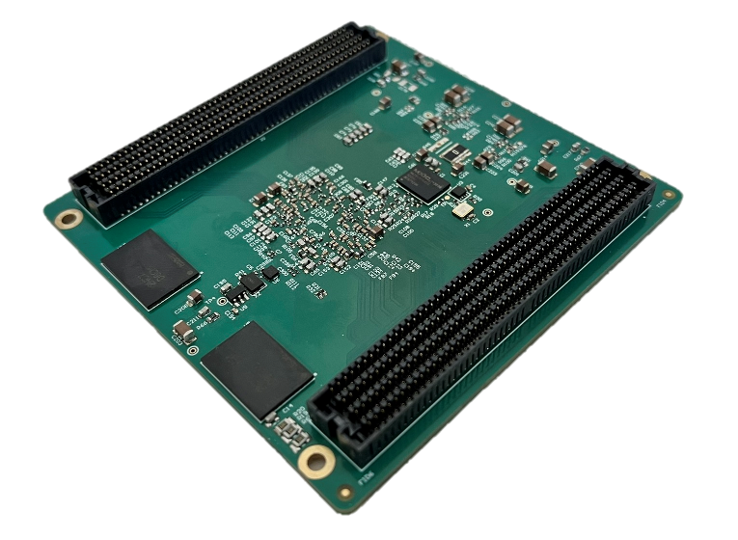

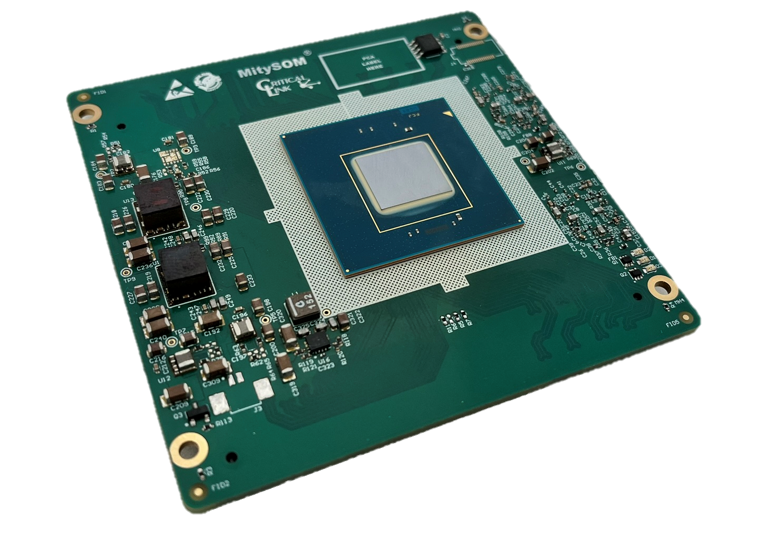

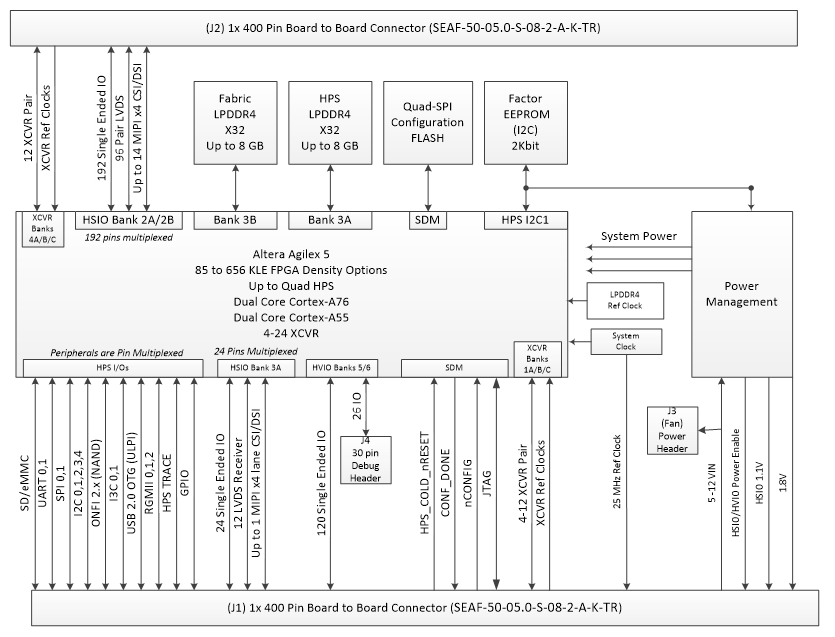

Critical Link's MitySOM-A5E Standard is a family of system on modules designed around the Altera Agilex™ 5 FPGA E-Series. In addition to the Agilex™ 5 FPGA with up to 656KLE, these SOMs feature HPS and FPGA LPDDR4 memory, QSPI NOR, on board power supplies, and a host of interfaces in a compact 82mm x 82mm footprint. MitySOM-A5E Standard i is a product-ready solution designed for long term availability and performance in industrial applications.

View Partner Website

Partner Product Page

Contact Now

Contact Critical Link LLC

LeadSource

ASAP Account ID

Record Type Name

Key Features

Production-ready SOM featuring a range of FPGA densities, memory configurations, and operating temperature ranges
Long term availability and product support
US-based engineering and production
Lifetime access to our technical support site, as well as access to application engineering resources and other services
Customers get access to Critical Link's development kit base board design files to jump start their own design
ISO 9001:2015 certified

Offering Brief

Device Family	Agilex® 5 FPGAs and SoC FPGAs E-Series
Offering Status	Production
Device OPN(s) on Board	A5ED065BB32AE6SR0;A5ED065BB32AE4SR0;A5ED013BB32AE4S;A5ED013BB32AE6S;A5ED013BB32AI6S;A5ED013BB32AI4S;A5ED043BB32AE4S;A5ED043BB32AE6S;A5ED043BB32AI4S;A5ED043BB32AI6S
Demo	No
Form Factor	82mm x 82mm
Power	5-12Vdc Input, all supplies generated on board
Interfaces	120 FPGA HVIO Pins; 1.8/2.5/3.3V CMOS; 216 User FPGA HSIO Pins; 24 1.1V Single Ended; 2 96-pin banks supporting 1.1V/1.2V/1.3V; Up to 108 LVDS pair; MIPI D-PHY to 2.5/3.5Gbps; Up to 24 Transceiver pairs. Additional HPS IO available, see data sheet
Memory	Up to 8 GB HPS FPGA shared LPDDR4 (32 bits wide, 10.6/14.9 GB/sec burst rate); Up to 8 GB FPGA LPDDR4 (32 bits wide, 10.6/14.9 GB/sec burst rate); 32 MB QSPI Configuration FLASH
Connectors	Dual ruggedized board to board connectors
Switches & LEDs	yes
Latest Quartus Version Supported	24.2.0
