The MitySBC-A5E is a single board computer featuring an Altera Agilex™ 5 SoC FPGA E-Series and includes up to 656KLE FPGA fabric, dual core Cortex-A55 + dual core Cortex-A76, on-board power supplies, and memory subsystems. The Agilex™ 5 delivers 2.5x the performance at 50% less power consumption versus the Cyclone® V SoC FPGA.

View Partner Website

Partner Product Page

Contact Now

Contact Critical Link LLC

LeadSource

ASAP Account ID

Record Type Name

Key Features

Single Board Computer offering a range of FPGA densities, memory configurations, and operating temperature ranges
Long term availability and product support
US-based engineering and production
Lifetime access to our technical support site, as well as access to application engineering resources and other services
ISO 9001:2015 certified

Offering Brief

Device Family	Agilex® 5 FPGAs and SoC FPGAs E-Series
Offering Status	Production
Device OPN(s) on Board	A5ED065BB32AE6SR0;A5ED065BB32AI6S;A5ED065BB32AE6S
Demo	No
Form Factor	6.5" x 8.0"
Power	12Vdc Input, all supplies generated on board

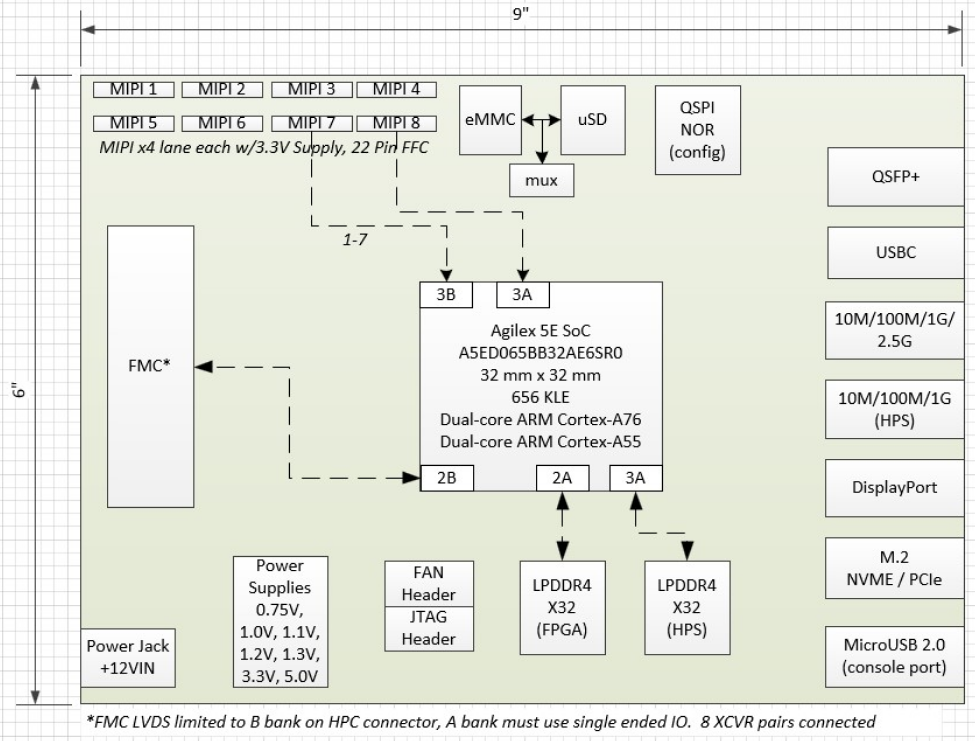

Interfaces	FMC; MIPI (x4 lanes x 8); QSFP+; 10M / 100M / 1G / 2.5G Ethernet; 10M / 100M / 1G Ethernet; Display Port; M.2; USB-C & USB 2 - See data sheet for full details
Memory	8 GB LPDDR4 HPS; 8 GB LPDDR4 FPGA; eMMC; uSD; QSPI NOR
Connectors	N/A
Switches & LEDs	Power switch, other toggle switches, and numerous LEDs
Latest Quartus Version Supported	24.2.0
