Mobile Industry Processor Interface (MIPI) D-PHY is supported on Agilex™ 5 and Agilex™ 3 FPGAs allowing transmission and reception of data through PHY-protocol interface (PPI) to connect with camera serial interface (CSI) and display serial interface (DSI) applications.
Altera
Key Features

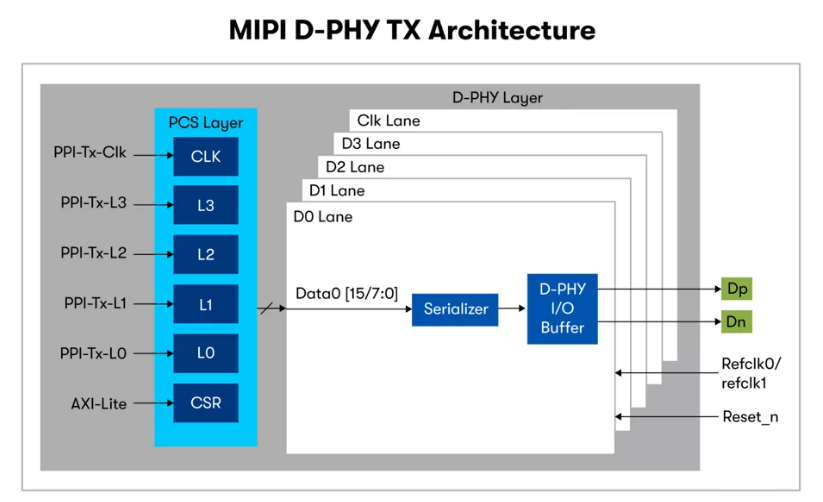

- MIPI D-PHY
- MIPI D-PHY feature supports high-speed (HS) and low-power (LP) modes and allows direct interface with the D-PHY compliance component without external components
- Supports low-power and high-speed signaling up to 3.5 Gbps per lane, supports AXI-Lite interface for seamless video transmission and reception, enables unidirectional multi-lane configurations 1, 2, 4, or 8 lanes
- MIPI CSI-2
- Latency Reduction and Transport Efficiency (LRTE) for image-sensor aggregation without adding to the overall system cost, Differential Pulse Code Modulation (DPCM) compression for seamless compression of HD images for mission critical applications,
- Reducing the number of wires in a system like IoT by using the Unified Serial Link (USL), Scrambling reduces Power Spectral Density (PSD) emissions for longer channels
- MIPI DSI-2:
- High Resolution Support: MIPI DSI-2 supports high-resolution displays, including 4K, 5K UHD+, and 8K UHD resolutions, VESA Display Compression-M (VDC-M) Compliance: It is compliant with VESA VDC-M 1.2
- Supporting various encoding mechanisms like BP, transform, MPP, MPP fallback, and BP skip, Flexible Video Input Formats: Supports 8, 10, or 12 bits per component video, with 4:4:4 sampling for RGB and 4:4:4, 4:2:2, and 4:2:0 sampling for YCbCr video input
- High Pixel Throughput: Capable of processing two pixels per clock per hard slice encoder, with parameterizable parallel slice encoder instances to adapt to different display resolutions
Offering Brief
Offering Brief
| Device Family | Agilex® 5 FPGAs and SoC FPGAs D-Series, Agilex® 5 FPGAs and SoC FPGAs E-Series, Agilex® 3 FPGAs and SoC FPGAs C-Series |
|---|---|
| Offering Status | Production |
| Demo | No |
| Integrated Testbench | Yes |
| Evaluation License | Yes |
| Design Examples Available | Yes |
| Compliance | No |
| Development Language | Encrypted Verilog |
Encrypted Verilog source code
Design Examples
Simulation Models
IP Evaluation Mode
Documentation: IP User Guide, Example Design User Guide, IP Release Notes
Ordering Information
IP-MIPI-CSI-2
from Direct
