Gidel

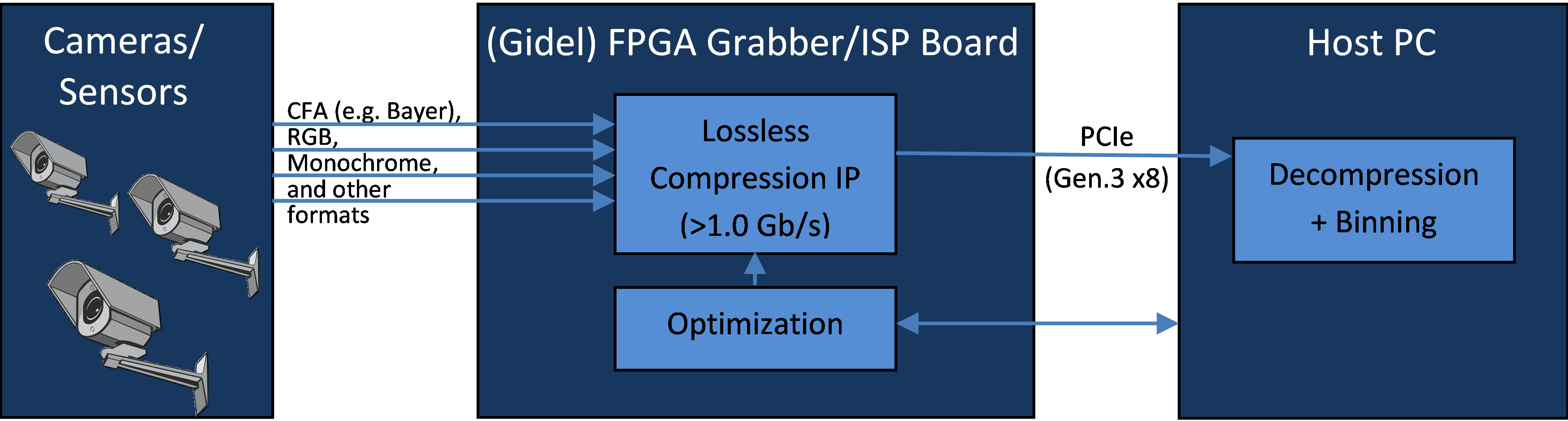

Gidel’s lossless compression IP targeting FPGA performs real-time compression for Color Filter Array (CFA – e.g., Bayer), Monochrome, and RGB images and videos. The IP enables compression of multi-camera/sensor inputs at pixel clock rates exceeding 1 gigapixel/s while using very small FPGA resources and minimal power consumption. The compression is highly efficient and, in real-case video applications, has achieved a lossless compression ratio of 1:2.3. The Lossless IP can be embedded seamlessly in Gidel's image acquisition systems, including the Gidel frame grabbers and compact edge computers. The compression supports high-end camera streaming, including 10+ GigE Vision, CoaXPress and Camera Link. Gidel's real-time compression IPs are particularly beneficial for high-bandwidth and high-resolution imaging and vision application enabling increased recording time, reduced storage size, and reduced post recording data offload and compression time on host computer.
Key Features
- Real-time lossless compression of Color Filter Array (e.g., Bayer), RGB, Monochrome images
- Compression of camera rates beyond 1 Giga pixel/s
- Can be embedded seamlessly in Gidel's frame grabbers and compact edge computers
- Supported by the Gidel InfiniVision IP for acquisition from multi-cameras/sensors
- Ultra-compact IP (typical< 1000 ALMs)
- Option for visually lossless compression fitting for processing quality
- Designed for both moving and static cameras
Offering Brief
Offering Brief
| Device Family | Agilex® 5 FPGAs and SoC FPGAs E-Series, Arria® 10 GX FPGA, Stratix® 10 GX FPGA |
|---|---|
| Offering Status | Production |
| Demo | No |
| Integrated Testbench | Yes |
| Evaluation License | No |
| Design Examples Available | Yes |
| Compliance | Yes |
| Compliance Link | Compliance Link |
| Latest Quartus Version Supported | 20.4.0 |
| Development Language | Encrypted Verilog, Encrypted VHDL |
IP License
Ordering Information
Gidel_Lossless_IP
from Direct
