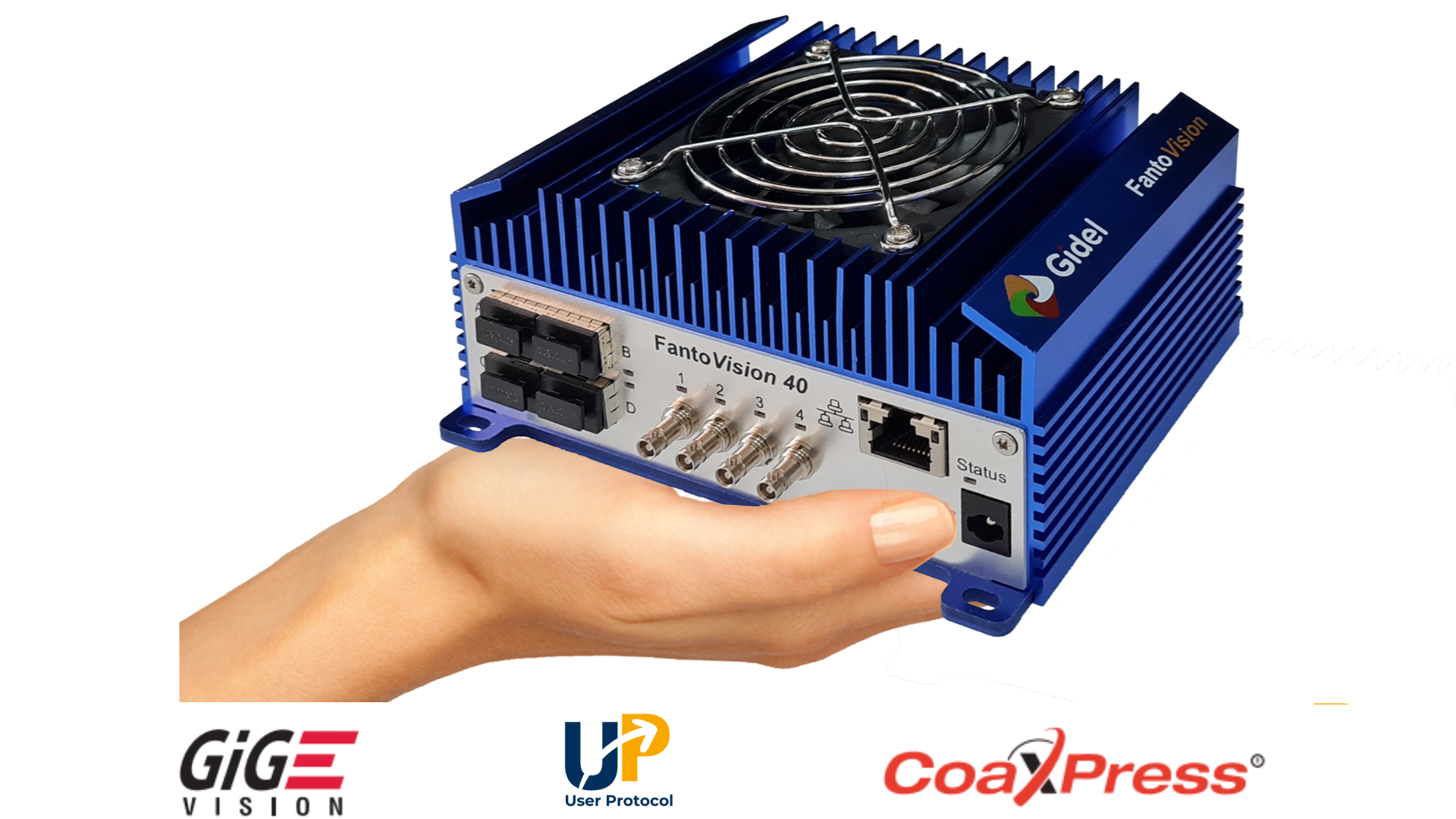

FantoVision-40: Vision & Imaging Edge Computer for CoaXPress & GigE Vision applications

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Gidel

Select

FantoVision-40 is a compact and powerful edge computer for vision and imaging applications that integrates Jetson computer with high-bandwidth camera interfaces and FPGA-based frame grabbing for AI-driven imaging applications. Designed to optimize performance while minimizing system size, it enables seamless grabbing, processing, image enhancements (HDR, white balance, etc.), compression of up to 40 Gb/s of GigE Vision/CoaXPress 2.1 (CXP-12/6), and recording, all with zero frame loss and CPU offloading. The FantoVision is perfect for AI, recording, and streaming making it ideal for applications such as drones, sports analysis, vehicle inspection, military, and volumetric video.

View Partner Website

Partner Product Page

Contact Now

Contact Gidel

LeadSource

ASAP Account ID

Record Type Name

Key Features

Up to 40 Gb/s bandwidth
4 x CoaXPress 2.1 (12/6), PoCXP
NVIDIA Jetson Orin NX SoM
Arria 10 FPGA for image acquisition and pre-processing
Ideal for Recording & Streaming solutions
Ultra-compact dimensions: 134 x 90 x 60 mm
Inline Image Processing option
On-FPGA real-time Compression (.JPEG, Lossless, Quality+) option
Real-Time High Dynamic Range (HDR) correction option
On Jetson Compression options: H264 and H265
Option for RTSP (Real-Time Streaming Protocol) output
Direct transfer of image buffers from grabber to GPU memory

Offering Brief

Device Family	Arria® 10 GX FPGA
Offering Status	Production
Device OPN(s) on Board	10AX027H3F34I2SG;10AX115H3F34I2SG;10AX016E3F29E2SG;10AX066H3F34E2LG
Demo	No
Form Factor	Edge Computer: 134 x 90 x 60 mm
Power	Typical Use: <25W, Depends on user application and FPGA Type
Interfaces	4x CoaXPress-12/6 cameras 2x CoaXPress-12/6 cameras 1x CoaXPress-12/6 camera Option for: 4x 10 GigE Vision Cameras Option for: 8x 5 GigE Vision Cameras Option for: 16x 2.5 GigE Vision Cameras
Memory	256MB
Connectors	1,2 or 4HD-BNC \| Up to 4 x SFP+ (Copper / Fiber optic) \| JTAG
Switches & LEDs	power, status LED
Latest Quartus Version Supported	20.4.0
