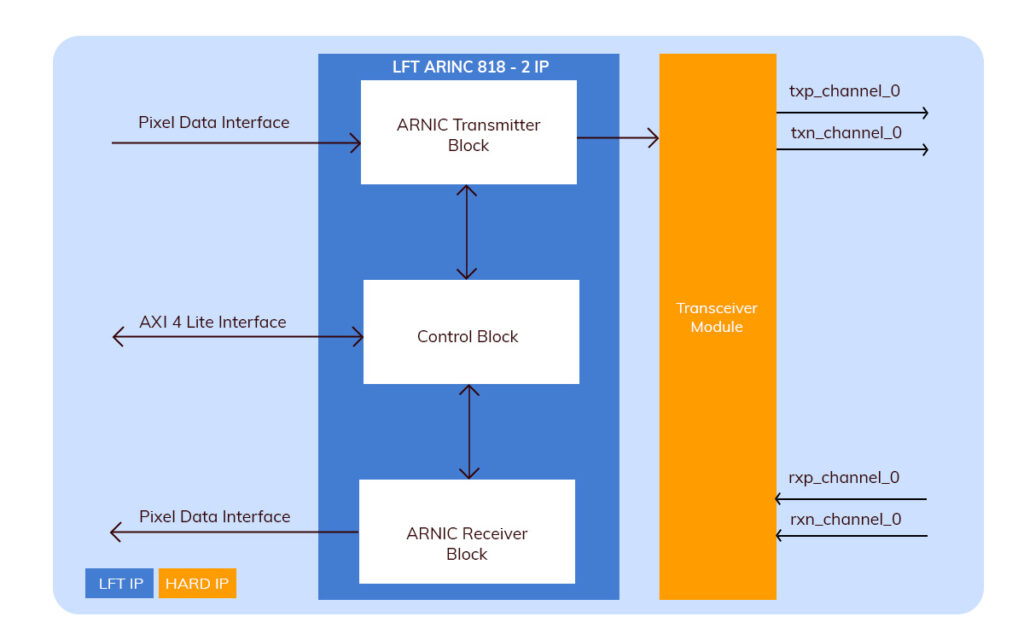

Logic Fruit Technologies has designed & implemented ARINC 818 Transmitter & Receiver IP Core supporting multiple line rates up to 8.5 Gbps. The IP core has been developed by taking DO-254 Methodology and is having CEMILAC certification.
Logic Fruit Global Technologies Inc
Key Features
- Compliant with ARINC 818-2 Specification
- Protocol Base: Built on Fibre Channel Audio Video (FC-AV) protocol
- Point-to-Point Video/Data Transmission support using 8B/10B Encoding over the serial link.
- Link Support: Supports both optical and electrical links
- Speed: Supports up to 12.75 Gbps maximum
- Supports line-segmentation and line-synchronous transmission.
- Receiver error and status reporting with support for user data.
- CEMILAC certified and DO-254 DAL-B Compliant design.
- IP Support: Only Tx, Only Rx, Both Tx and RX
Offering Brief
Offering Brief
| Device Family | Stratix® IV E FPGA, Stratix® IV GX FPGA |
|---|---|
| Offering Status | Production |
| Integrated Testbench | Yes |
| Evaluation License | No |
| Design Examples Available | No |
| Demo | No |
| Compliance | Yes |
| Latest Quartus Version Supported | 24.3.1 |
| Development Language | Verilog, VHDL |
Data Rate: 1x, 2x, 3x ,4x,8x
Frame Rate: 20Hz, 25Hz, 30Hz, 50Hz, 60Hz, 75Hz and 80HZ
Video Resolution: Support up to Full HD along with Scan Type: Progressive/Interlaced
Video Synchronization: Line synchronization and Line Segmentation
External Ready Interface: Video as well as User Data
Latency: Less than 2 Rows from In to Out
CRC Support: Line (ADVB frame) as well as Frame (Prior Image)
Status Monitoring support: Yes
Meta (Ancillary) Data Monitoring: Yes
SOFi/n Class Support: Class 1 and Class 3 Support
