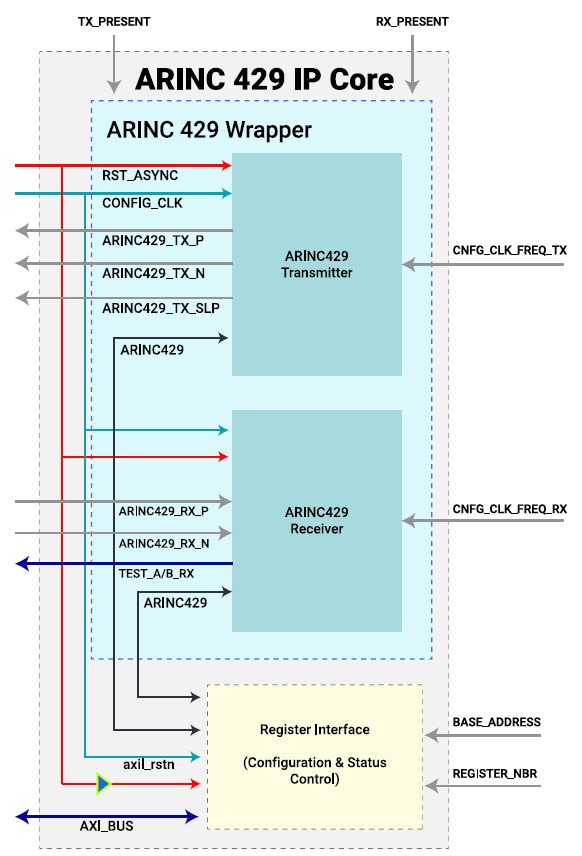

ARINC 429 IP Core is a multichannel module with multiple TX/RX. It supports configurable data rates from 12.5 Kbps to 1 Mbps. With features like parity and gap generators for data integrity, the module can operate as a transmitter, receiver, or both, with runtime status indicators.
Logic Fruit Global Technologies Inc
Key Features
- Multichannel TX & RX — Supports multiple transmitters and receivers in a single core
- Configurable Channels — Users can specify any number of RX / TX channels with standard offering: 16 receivers & 8 transmitters
- Wide Data Rate Support — Operates from 12.5 kbps up to 1 Mbps including both low speed and high speed ARINC-429 modes
- Parity & Gap Generation/Checking — Built-in logic for parity insertion/checking and inter-word gap handling for integrity compliance
- Configurable Parity & Data Types — Ability to toggle parity (odd/even) or disable it, choice of data type handling
- AXI-Lite Interface Compatibility — Control & status registers accessible via AXI-Lite, simplifying integration with SoCs / CPUs
- FPGA Portability — Designed to be portable to any available standard FPGA
- Runtime Status Indicators — Signals/flags exposed to software/hardware to monitor the link status during operation (e.g. TX / RX presence)
Offering Brief
Offering Brief
| Device Family | Arria® 10 SX SoC FPGA, Arria® 10 GT FPGA, Arria® V GZ FPGA |
|---|---|
| Offering Status | Production |
| Integrated Testbench | No |
| Evaluation License | No |
| Design Examples Available | No |
| Demo | No |
| Compliance | No |
| Latest Quartus Version Supported | 24.3.1 |
| Development Language | VHDL |
Multichannel module supporting ARINC429 Receiver/Transmitter
Configurable module supporting any number of receivers and transmitters (Standard with 16 receivers & 8 transmitters)
Configurable data rate supporting from 12.5 Kbps to 1 Mbps
Parity & Gap generators & checkers for high data integrity
Configurable parity and data types
AXI Lite Compatibility for user interface
