Logic Fruit’s 100G UDP IP Stack provides high-speed LAN or point-to-point communication while offloading UDP/IP tasks from the host. ARP and ICMP support ensures smooth network operation and easily integrates into SoC designs, even without a host processor. The AXI4-stream data width of the 100G interface shall be 512 bits for both the MAC and Application interface.
Logic Fruit Global Technologies Inc
Key Features
- 100G Ethernet
- IPv4 support without packet fragmentation
- Jumbo Frames
- Transmit and Receive
- ARP with Cache
- ICMP (Ping Reply) UDP Unicast
- UDP Port Filtering
- 1-8 UDP Transmit, and 1-8 UDP Receive channels
- ARP support for operation in networks with Dynamic IP allocation.
Offering Brief
Offering Brief
| Device Family | Arria® 10 SX SoC FPGA |
|---|---|
| Offering Status | Production |
| Integrated Testbench | No |
| Evaluation License | No |
| Design Examples Available | No |
| Demo | No |
| Compliance | No |
| Latest Quartus Version Supported | 24.3.1 |
| Development Language | Verilog, VHDL |
100G Ethernet support.
UDP port filtering

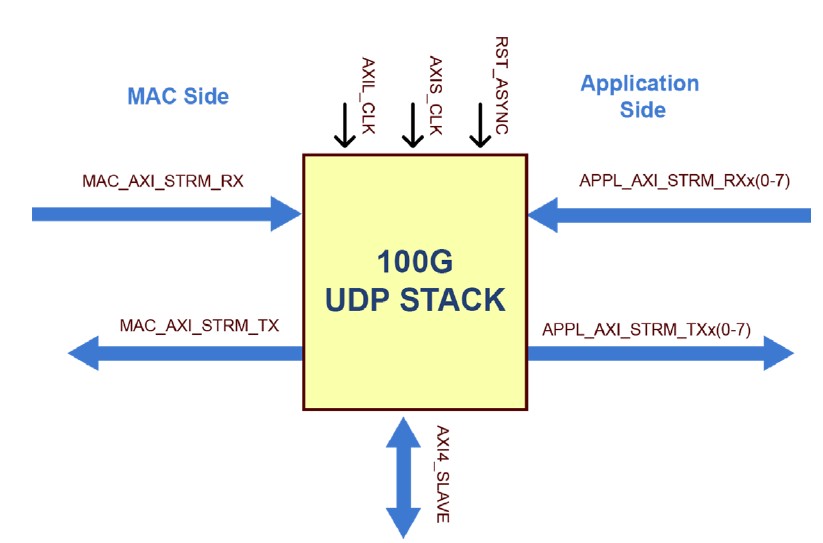

512-bit streaming capable using AXI4 Stream for Ethernet MAC
32-bit AXI4 Lite Interface for Control and Status registers
Separate clock domains for packet processing and CSR interface.
IPv4 support without packet fragmentation
ARP support for operation in networks with Dynamic IP allocation.
Local MAC address, Local IP address, Gateway IP address.
Per-channel: Destination IP address, Source, Destination, and filtered UDP ports.
